HPLED II C5 (Colour RGBWA)
LED Re-Lamping for Source Four Profile
Lites HPLED II C5 is a revolutionary re-lamping engine designed to replace and convert conventional HPL 575/750W tungsten lamps used in original ETC Source Four profile, into a fully LED profile-luminaire. The integral set of achromatic lenses, set in the optical system, enhances brightness and gives consistency of light distribution across the illuminated surface. The HPLED II C5 is powered by a high-power, RGBWA-colored, red, green, blue, white, amber light-emitting diode (LED array) that allows for an extended color gamut. The on-board display board operates the fixture via ready RDM and or DMX Protocols. The rear section of the HPLED II C5 embeds functions to facilitate fixture operations, such as convenient IN/OUT 5-pin XLR and Power-Con connectors. Made in Italy. Designed and manufactured by Lites srl.
Technical Specifications
- Power Supply: 100–240V ~ 50/60Hz auto-setting (single-phase)
- Maximun power consumption 170W

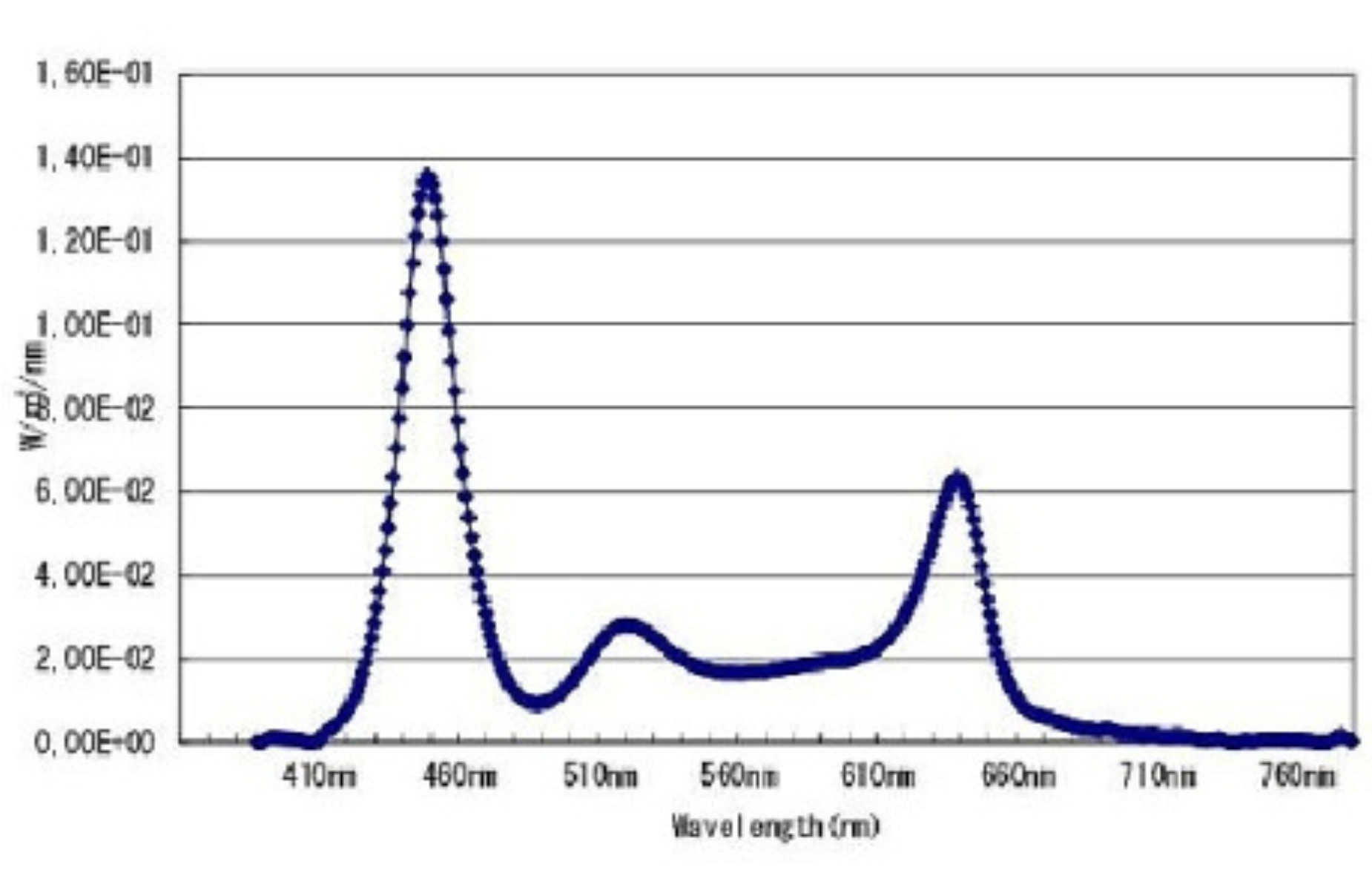

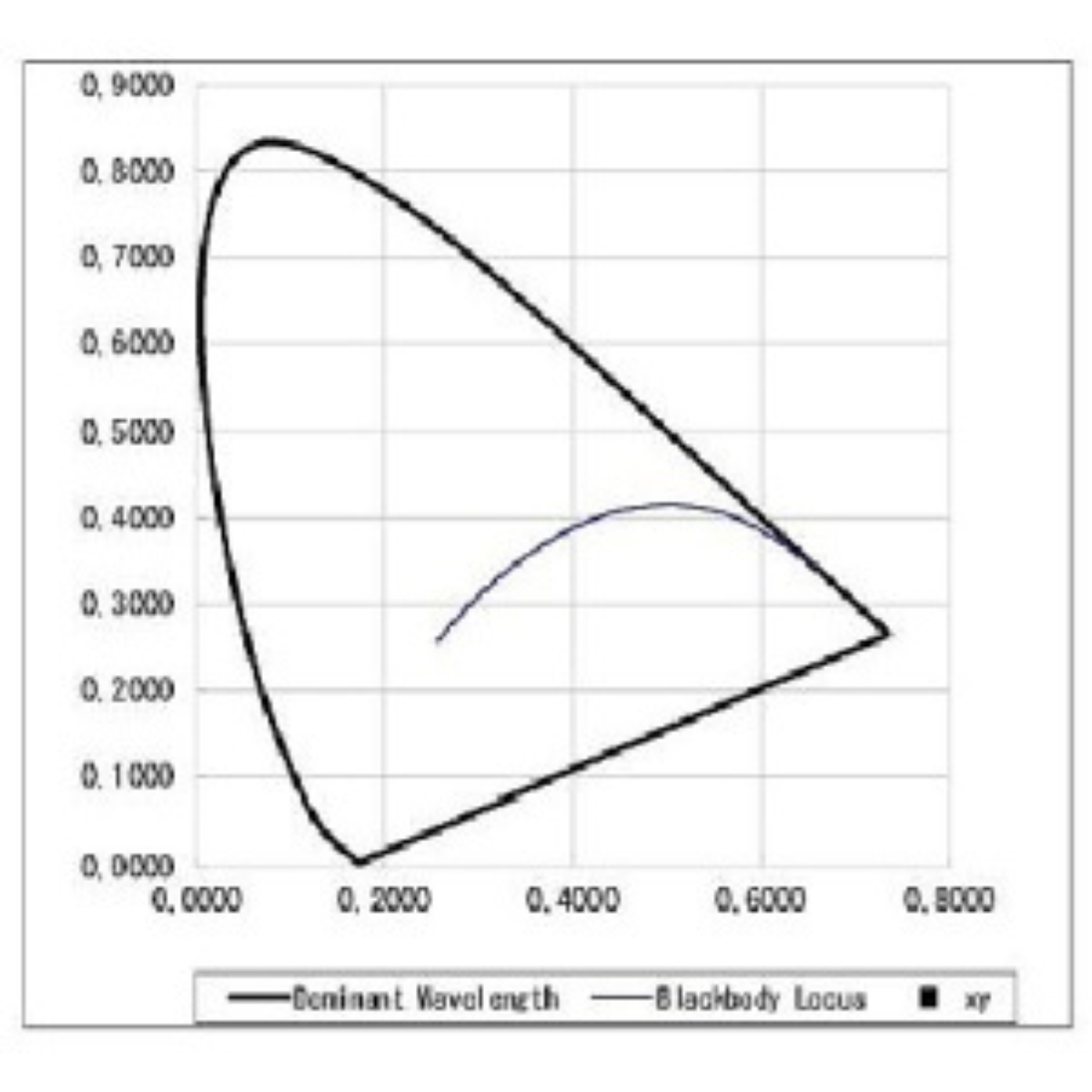

- 5-colour RGBWA LED array (red, green, blue, white 5000°K, amber)
- Protection grade: IP20 (HOUSE HPLED in original ETC S4 only)
- Double lens optics with multiple anti-reflection coatings
- Working position: any (HOUSE HPLED in original ETC S4 only)
- Data Protocols: DMX 512 and/or RDM ready
- Power connectors: IN - OUT power-con Neutrik connectors
- Control of LED frequency: selection of LED frequency refresh
- Dimming curves control: selection of two dimming curves control
- Manual operations: via keys provided on the display
- LED life 50.000 Hrs (see manufacturer's specifications)
- User's interface: 4-digit display and 4 keys
- Data connectors: IN - OUT Neutrik XRL 5
- Fan control: fan speed adjustments
- Net weight: 2,49Kg
- Packed weight: 3,3Kg
- Packaging volume: 0,012m³
Compliant to:
Download
Photometric data (all channels set to 100%)
| Distance m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | |
|---|---|---|---|---|---|---|---|
| Source Four optics 19° | Lux | 2552 | 1134 | 638 | 408 | 284 | 208 |
| Diameter Ø m | 1.20 | 1.80 | 2.40 | 3.00 | 3.60 | 4.20 | |
| Source Four optics 26° | Lux | 1731 | 769 | 433 | 277 | 192 | 141 |
| Diameter Ø m | 1.65 | 2.48 | 3.31 | 4.41 | 4.97 | 5.79 | |
| Source Four optics 36° | Lux | 1077 | 478 | 269 | 172 | 120 | 88 |
| Diameter Ø m | 2.32 | 3.48 | 4.64 | 5.81 | 6.97 | 8.13 | |
| Source Four optics 50° | Lux | 533 | 237 | 133 | 85 | 59 | 43 |
| Diameter Ø m | 3.73 | 5.59 | 7.46 | 9.32 | 11.19 | 13.05 |
Dimensions
The information contained in this document has been carefully drawn and checked. However, the manufacturer shall not be liable for any inaccuracy or mistake. Lites srl reserves the right to modify or make any functional change at any time without notice.
