HPLED RJ T (Bi-Colour 3000°-5700°K)
LED Re-Lamping for Robert Juliat Profile
The Lites HPLED RJ T is a retrofit module that allows for upgrading Robert Juliat 1000W Profile (600SX series and others) to high efficiency LED devices. The HPLED RJ T is powered by a high power Light Emitting Diode (LED Matrix) with a variable colour temperature from 3000°K to 5700°K. The electronic board, equipped with a display, manages the device via RDM or DMX protocols. The rear section of the HPLED RJ T includes features that facilitate the device’s operation, such as convenient 5-pin XLR IN/OUT connectors and Power-Con. Made in Italy. Designed and produced by Lites srl.
Technical Specifications
- Power Supply: 100–240V ~ 50/60Hz auto-setting (single-phase)
- Maximun power consumption 170W

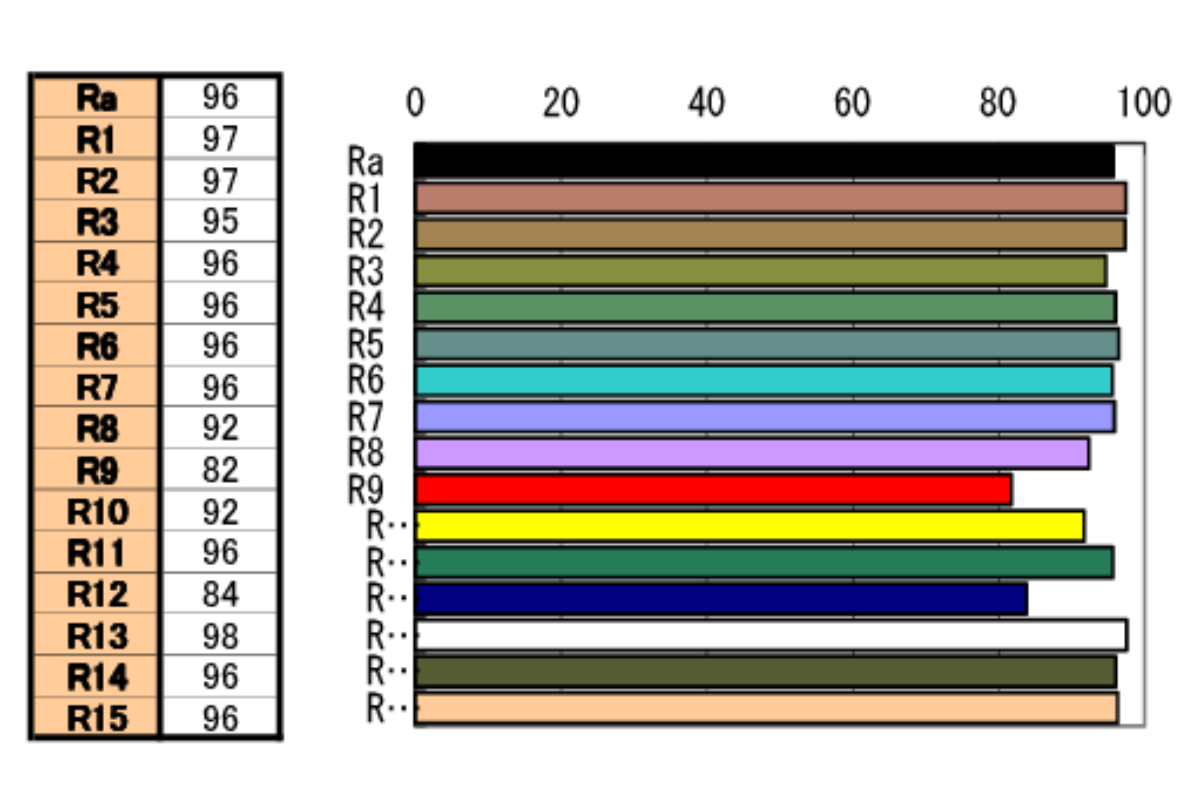

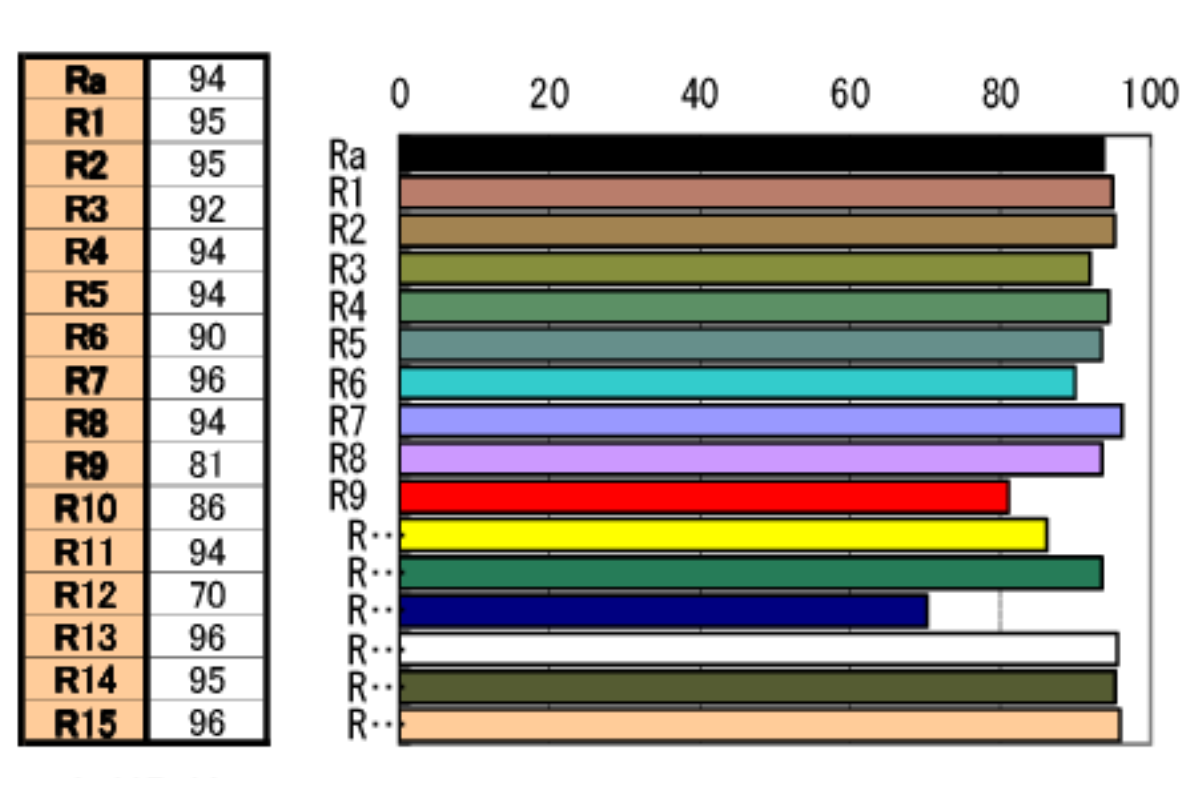

- CRI: 96 (3000°K) and 94 (5700°K)
- LED arrays 3000°K to 5700°K
- Protection grade: IP20 (HOUSE HPLED in original 600SX Series)
- Working position: any (HOUSE HPLED in original 600SX Series)
- Data Protocols: DMX 512 and/or RDM ready
- Power connectors: IN - OUT power-con Neutrik connectors
- Control of LED frequency: selection of LED frequency refresh
- Dimming curves control: selection of two dimming curves control
- Manual operations: via keys provided on the display
- LED life 50.000 Hrs (see manufacturer's specifications)
- User's interface: 4-digit display and 4 keys
- Data connectors: IN - OUT Neutrik XRL 5
- Fan control: fan speed adjustments
- Net weight: 2,4Kg
- Packed weight: 2,9Kg
- Packaging volume: 0,015m³
Compliant to:
Download
Photometrics Data LED 3000°K CRI 96 zoom 16°- 35° (cod. 614SX)
| Distance m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | |
|---|---|---|---|---|---|---|---|
| Zoom 16° | Lux | 3.938 | 1.75 | 984 | 630 | 438 | 321 |
| Diameter Ø m | 1,12 | 1,68 | 2,24 | 2,81 | 3,37 | 3,93 | |
| Zoom 35° | Lux | 1.125 | 500 | 281 | 180 | 125 | 92 |
| Diameter Ø m | 2,52 | 3,78 | 5,04 | 6,30 | 7,56 | 8,82 |
Photometrics Data LED 5700°K CRI 94 zoom 16°- 35° (cod. 614SX)
| Distance m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | |
|---|---|---|---|---|---|---|---|
| Zoom 16° | Lux | 4.766 | 2.118 | 1.191 | 763 | 530 | 389 |
| Diameter Ø m | 1,12 | 1,68 | 2,24 | 2,81 | 3,37 | 3,93 | |
| Zoom 35° | Lux | 1.344 | 597 | 336 | 215 | 149 | 110 |
| Diameter Ø m | 2,52 | 3,78 | 5,04 | 6,30 | 7,56 | 8,82 |
Dimensions
The information contained in this document has been carefully drawn and checked. However, the manufacturer shall not be liable for any inaccuracy or mistake. Lites srl reserves the right to modify or make any functional change at any time without notice.
