Lites Profile white



Download the brochure UK: Lites Profile white

Download the brochure IT: Lites Profile white (Italiano)

Download the manual UK:Lites Profile white (UK)

Download the manual IT: Lites Profile white (italiano)

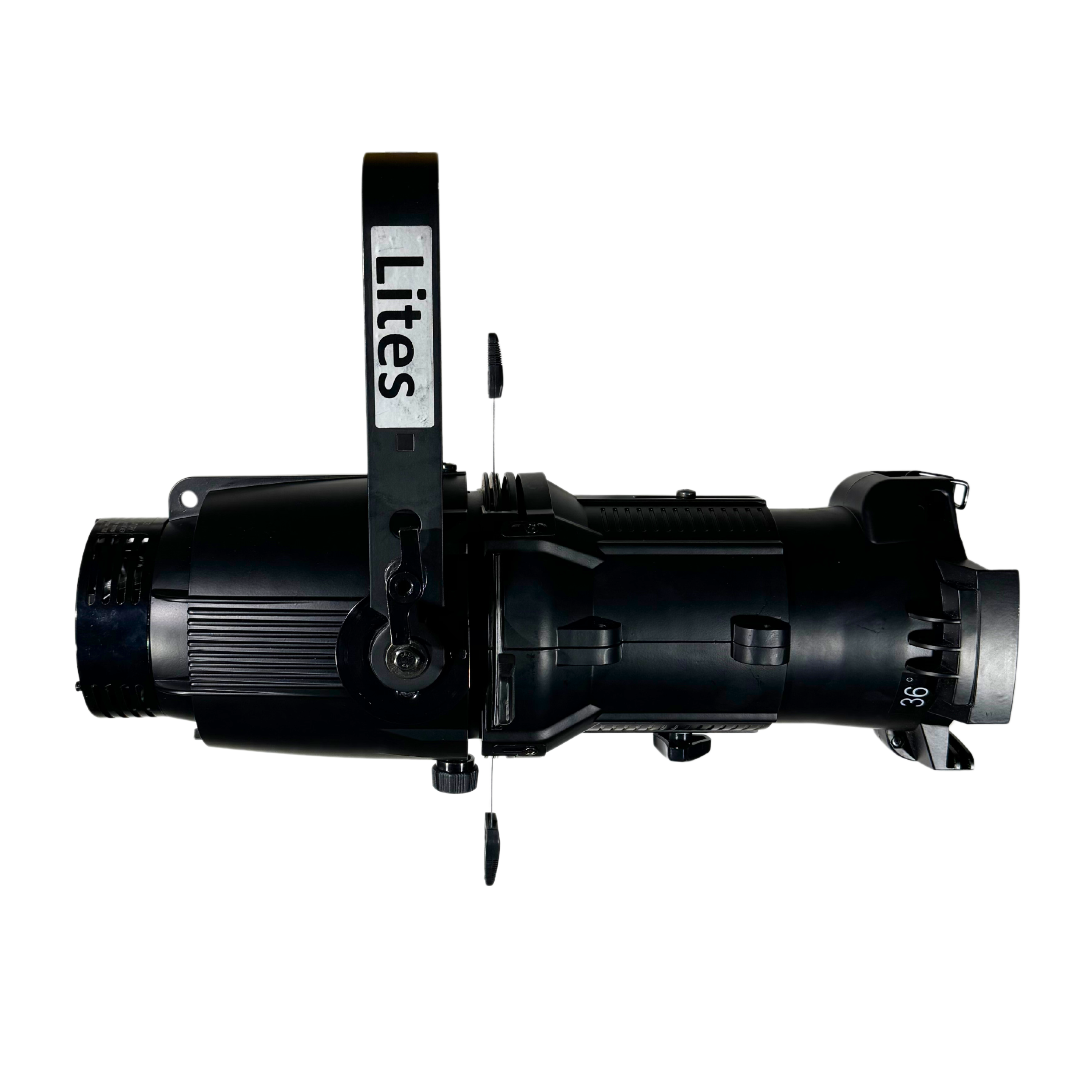

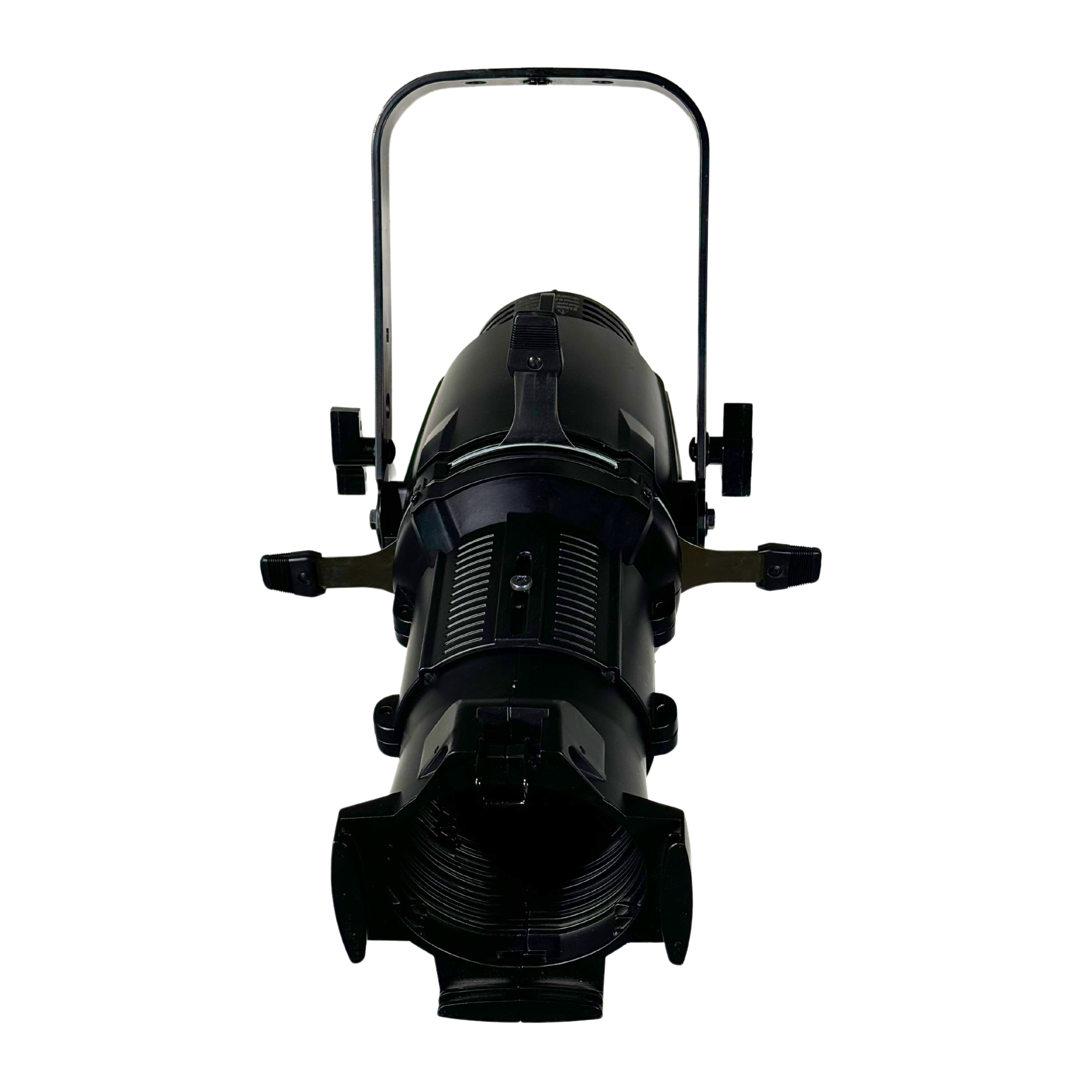

Lites Profile white series virtually supplants traditional tungsten-bulb luminaires and the LED engine defeats unwanted shades, providing seamless and light consistency diffusion across the illuminated areas. The Lites Profile white series is a low-consumption luminaire as it draws no more than 170W and its scoring brightness is significantly comparable to traditional HPL tungsten lamps.

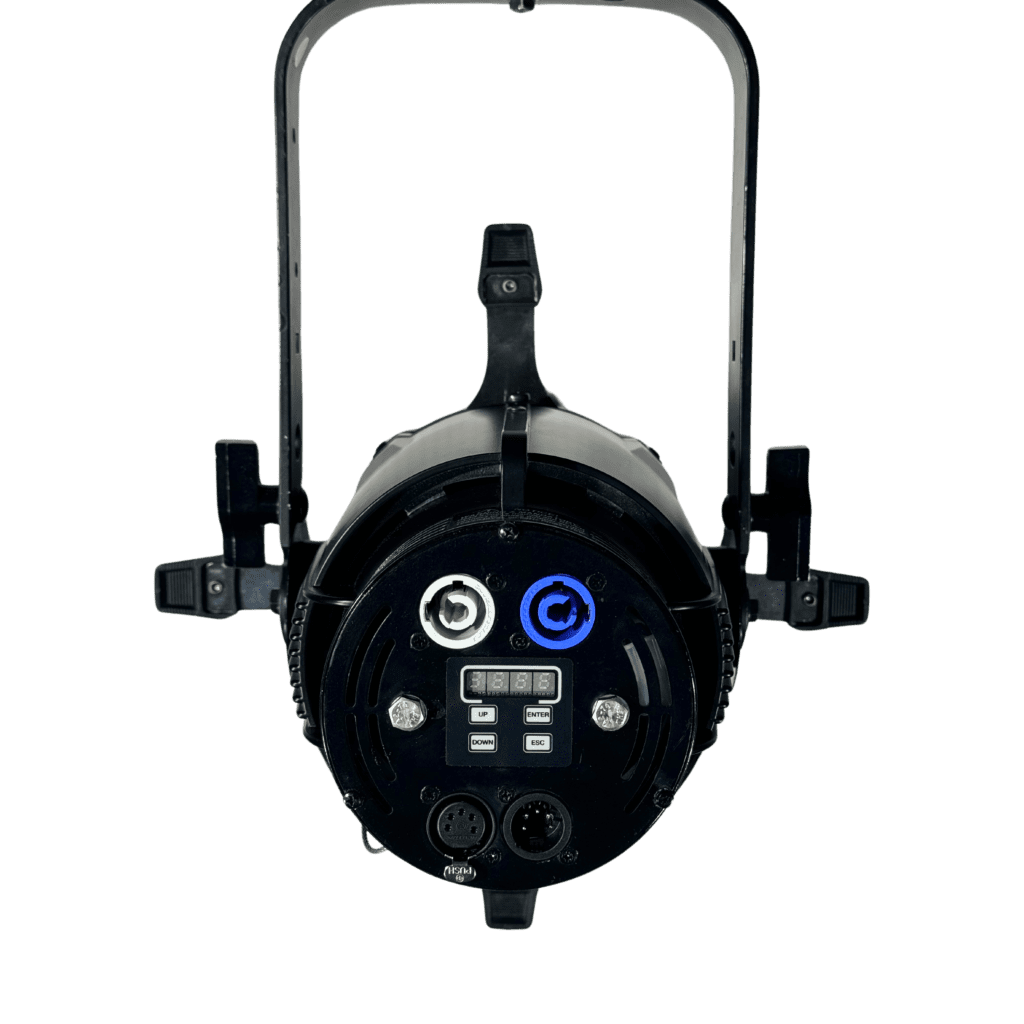

Lites Profile white series, is a fully flicker-free operation profile and accounts for the on-board display board for a 16-bit dimming with 2 selectable curves, simulating halogen or discharge lamp based fixtures; the flexibility of Lites Profile white series meets users expectations as installations of luminaire can be juxtaposed with the use of functional IN/OUT 5-pin XLR and power-con connectors. The ultimate ready RDM and or the classic DMX Protocols do away with bulky dimmers and other obsolete accessories. The low heat emission of the Lites Profile allows the use of instant gobos from standard printers, all beneficial perks that lift managements expense.

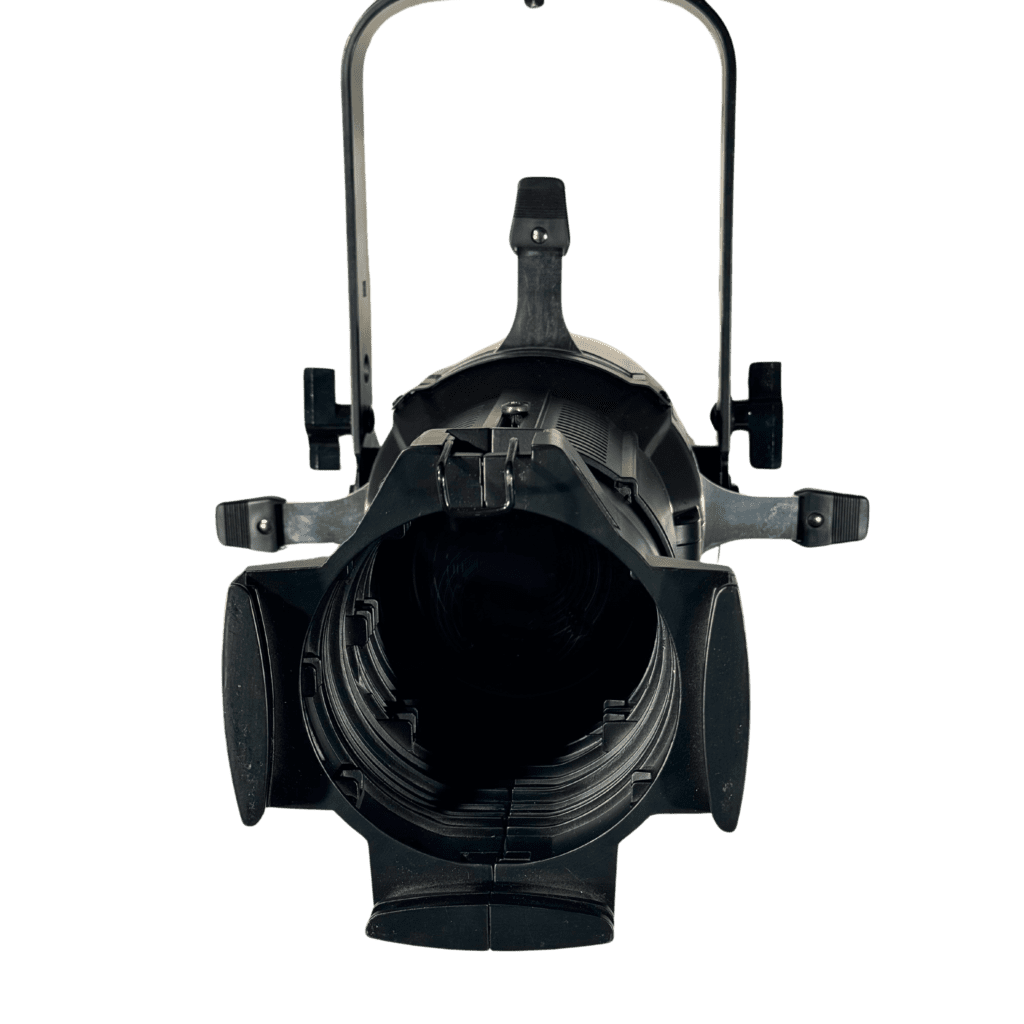

Additionally Lites Profile white series, includes a double lens optics set with multiple anti-reflection coatings while provided shutters shape lights to sharp patterns. Product of Italy.

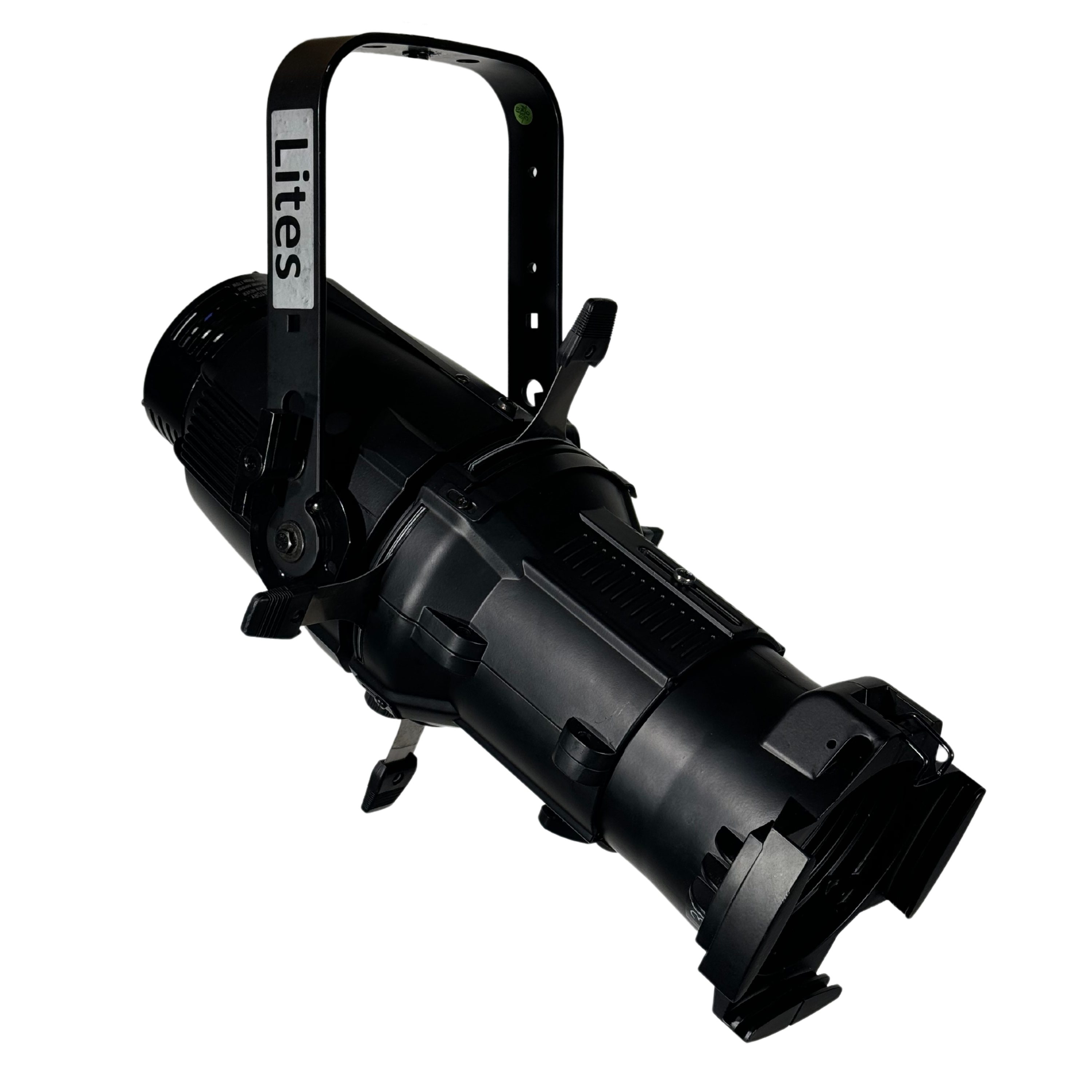

lites-profile-01

Technical Specifications
Power Supply: 100-240V ~ 50/60Hz auto-setting (single-phase)
Maximum power consumption: 170WMinimum room temperature: -10°C
Stand-by power consumption: 5WMaximum room temperature: 35°C
LED life 50.000 Hrs (see manufacturer's specifications)Maximum body temperature: 60°C
LED colour temperatures: 2700°K; 3000°K; 4000°K; 5600°K (specify when ordering)
Selection of 19°, 26°, 36° objective lensesDouble lens optics with multiple anti-reflection coatings
Minimum CRI: 90 > and 97 > (depending on LED model)Protection rating: IP20
Die-aluminium body to maximize heat dissipationWorking position: any

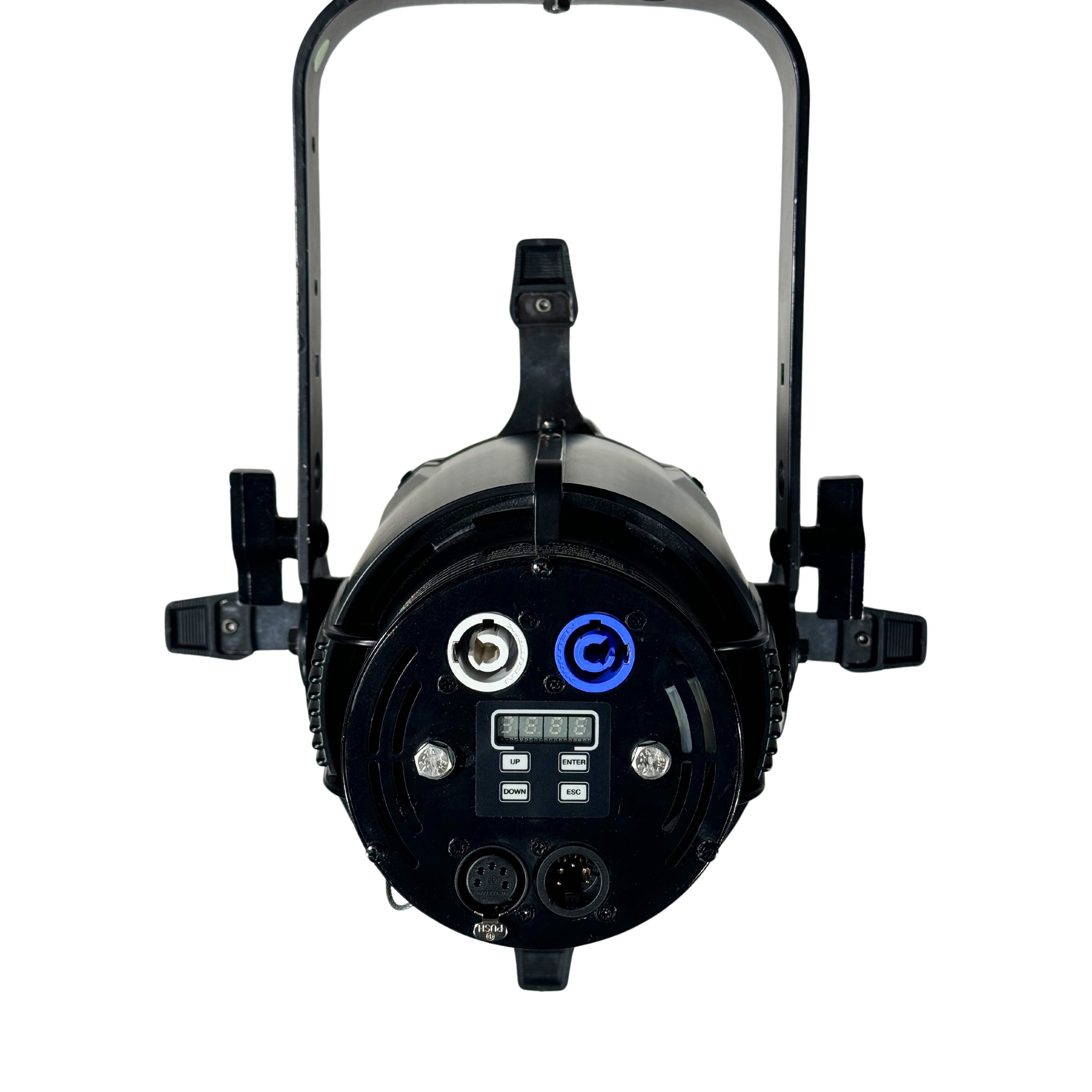

Data Protocols: DMX 512 and/or RDM readyUser's interface: 4-digit display and 4 keys
Power connectors: IN - OUT power-con Neutrik connectorsData connectors: IN - OUT Neutrik XRL 5
Control of LED frequency: selection of LED frequency refreshIdle fan mode for totally silent use of the unit
Dimming curves control: selection of two dimming curves control
Manual operations: via keys provided on the displayColour-frame gate dimensions: 163x159 mm
Unit net weight: 7,5 KgGross weight: 8,3 KgCubical volume: 0,0394m³
Accessories: Ø86mm B size gobo-holder (Ø66mm image)Accessories: Iris diaphragm
Compliant to: ce-logo-01
Photometric data LED 3000°K CRI 97
Statistics rates measured with the use of 3000°K CRI 97 LED lantern in use for 30 minutes at 25°C room temperature
Distance m4 m6 m8 m10 m12 m14 m
Angle 19°Lux546024261365874607446
Diameter Ø m1.201.802.403.003.604.20
Angle 26°Lux415018441038664461339
Diameter Ø m1.652.483.314.414.975.79
Angle 36°Lux34021512850544378278
Diameter Ø m2.323.484.645.816.978.13
hpled-ii-white-3000k-cri-97-img1hpled-ii-white-3000k-cri-97-img2
hpled-ii-white-3000k-cri-97-img3hpled-ii-white-3000k-cri-97-img4
Photometric data 5600°K CRI 90
Statistics rates measured with the use of 5600°K CRI 90 LED lantern in use for 30 minutes at 25°C room temperature
Distance m4 m6 m8 m10 m12 m14 m
Angle 19°Lux6503289016261041723531
Diameter Ø m1.201.802.403.003.604.20
Angle 26°Lux488321701221781543399
Diameter Ø m1.652.483.314.414.975.79
Angle 36°Lux415318461038665461339
Diameter Ø m2.323.484.645.816.978.13
hpled-ii-white-5600k-cri-90-img1hpled-ii-white-5600k-cri-90-img2
hpled-ii-white-5600k-cri-90-img3hpled-ii-white-5600k-cri-90-img4
Photometric data 5600°K CRI 97
Statistics rates measured with the use of 5600°K CRI 97 LED lantern in use for 30 minutes at 25°C room temperature
Distance m4 m6 m8 m10 m12 m14 m
Angle 19°Lux573625491434918637468
Diameter Ø m1.201.802.403.003.604.20
Angle 26°Lux430719141077689479352
Diameter Ø m1.652.483.314.414.975.79
Angle 36°Lux36631628916586407299
Diameter Ø m2.323.484.645.816.978.13
hpled-ii-white-5600k-cri-97-img1hpled-ii-white-5600k-cri-97-img2
hpled-ii-white-5600k-cri-97-img3hpled-ii-white-5600k-cri-97-img4

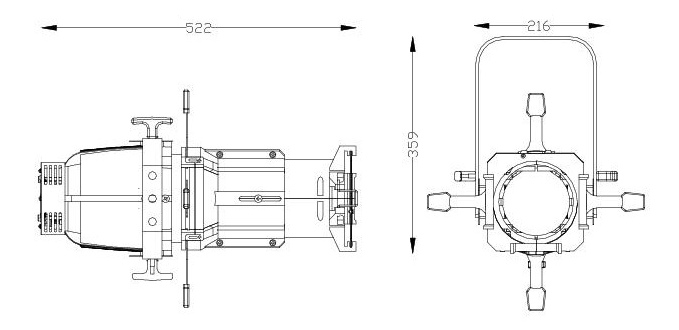

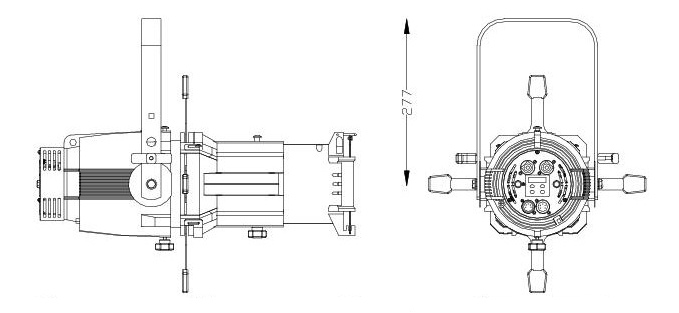

Dimensions:

profile-dimensions-01
profile-dimensions-02

The information contained in this document has been carefully drawn and checked. However, the manufacturer shall not be liable for any inaccuracy or mistake. Lites srl reserves the right to modify or make any functional change at any time without notice.
